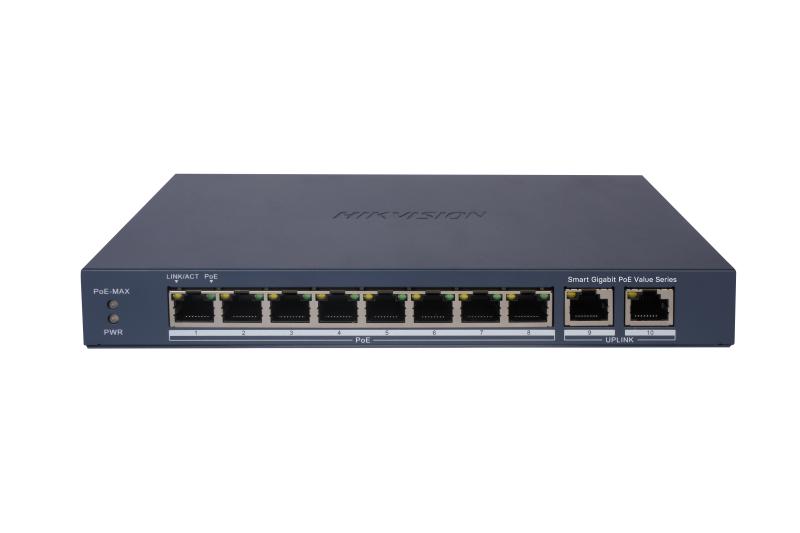

HIKVISION DS-3E0109P-E(C) 9 Port 100M Network Switch Unmanaged PoE

**PoE Power Supply** The PoE power supply standard is IEEE802.3af and IEEE802.3at. It has a maximum power budget of 123W, with a maximum power consumption of 127W. The net weight is 0.57kg, and its dimensions are 235mm x 103mm x 27mm. The operating temperature range is 0℃ to 40℃, while the storage temperature range is -40℃ to 70℃. The operating humidity is 10% to 90% non-condensing, and the storage humidity is 5% to 90% non-condensing. The power supply is 51VDC, 2.5A, and the power consumption in idle mode is ≤127W. **Network Parameters** The device has 9 ports, all of which are Ethernet ports. The port standard is IEEE802.3, 802.3u, 802.3x, 802.3af, and 802.3at. The forwarding mode is Store-and-forward, and the working mode is ExtendOn:250m, 10Mbps, CAT5e, ExtendOff:100m. There are 2 ports for long-distance transmission, and the MAC address table has a capacity of 4k. The switching capacity is 1.8Gbps, and the packet forwarding rate is 1.34 Mpps.
